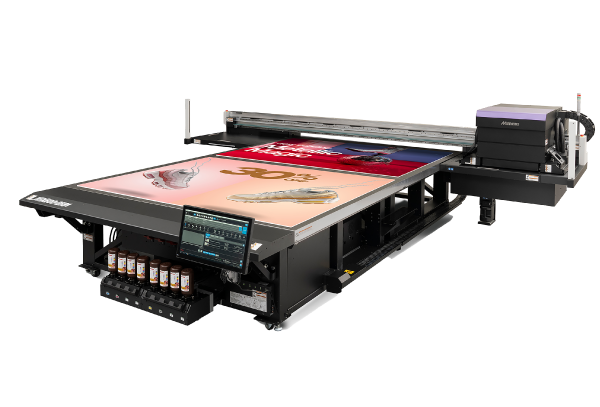

Mimaki JFX600 Series

Book a Demo

Item Code #

High performance, extreme efficiency
The JFX600 Series wide format flatbed printers boast high speed production with full board printing in under 60 seconds. With their quick registration system, semi-automated maintenance, full board and extra-large print areas of 8’ x 4’ and 8’x10’, they fit as perfectly in a high-volume packaging or POP shop as they do in specialized architectural printing and interior design shops.

• 16 print heads
• Print speeds up to 2152 ft2/hr (faster than 1 board / minute)
• Easy navigation on-board touch screen control (MPC)
• Industry leading core technologies
• Production workflow ready with IoT support
• Eco-friendly Greenguard Gold certified UV-LED inks
• PICT remote monitoring

JFX600-2513
• Full bleed 8’ x 4’ print area, up to 2.36” thick
• Two selectable vacuum zones

Download Spec

JFX600-2531
• Extra-large full bleed 8’ x 10’ print area up to 2.36” thick
• Nine selectable vacuum zones
• Toggle-print continuous print functionality

Download Spec
Name of Equipment
Mimaki JFX600 Series
Ink Type

UV

Width

Maximum Print Area:
JFX600-2513: 98.43″ x 51.18″ (2,500 mm x 1,300 mm)
JFX600-2531: 98.443″ x 122.05″ (2,550 mm x 3150 mm)
Maximum Media Thickness:
up to 2.36″ (60 mm)

Dimensions

Dimensions (W × D × H):
JFX600-2513: 207.48″ x 110.24″ x 62.99″ (5,300×2,850×1,700mm)
JFX600-2531: 213” x 191” x 67” (5400mm x 4850mm x 1700mm)

Application

• Pop Displays
• Road Signs
• Directory Signage
• Application Art-Canvas
• Carton Boxes
• Serial Plates
• Dimensional Sign

Manufacturer Number

• JFX 600-2513
• JFX 600-2531
Download
Brochure
Download
Spec Sheet
directory-signage-720x441
POP_POS_Displays-720x456
WINDOW-GRAPHICS
ROAD_SIGNS
ADA-braille-sign-720x616
Application_art-canvas-720x480
CARTON_BOXES-720x621
SERIAL_PLATES-720x405
DASHBOARD
